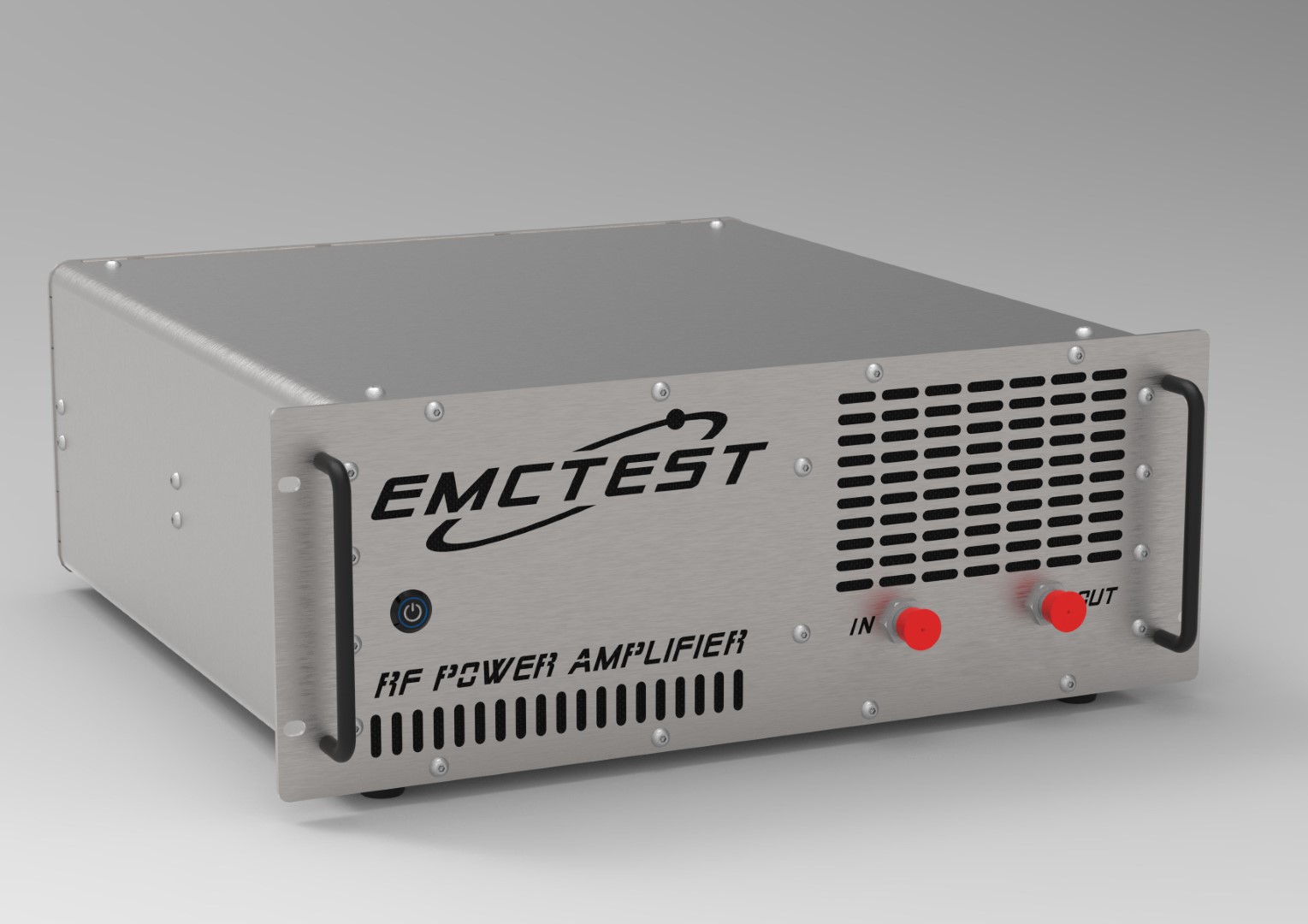

EMC05G2G544A
RF POWER AMPLIFIER
500 MHz - 2500 MHz / 25 Watts
The EMC05G2G544A is a broadband, and high-efficiency amplifier designed for radiated immunity testing, broadband mobile jamming, and other high-power linear applications.
Powered by advanced GaN solid-state technology and chip-and-wire assembly, this amplifier delivers exceptional power density, low distortion, and a wide dynamic range, all housed in a rugged stainless steel enclosure. Whether you're operating with CW, AM, or FM signals, the unit is engineered to perform reliably and efficiently under the most demanding conditions.
Key Features
- Solid-State Class AB Design – Proven architecture for durability and performance
- Ultra-Broadband Operation – Instantaneous coverage across the whole frequency band
- Supports CW, AM, and FM Modulations – Other formats available upon request
- Built-In Control & Protection – Intelligent circuitry ensures safe and optimal operation
- Stackable & Rack-Mountable – Easy integration into lab and test setups
- Versatile – Ideal for a wide variety of laboratory testing applications
- High Efficiency & Rugged Construction – Built to perform in harsh environments
- No frills - One button operation and you are ready for testing
Specifications

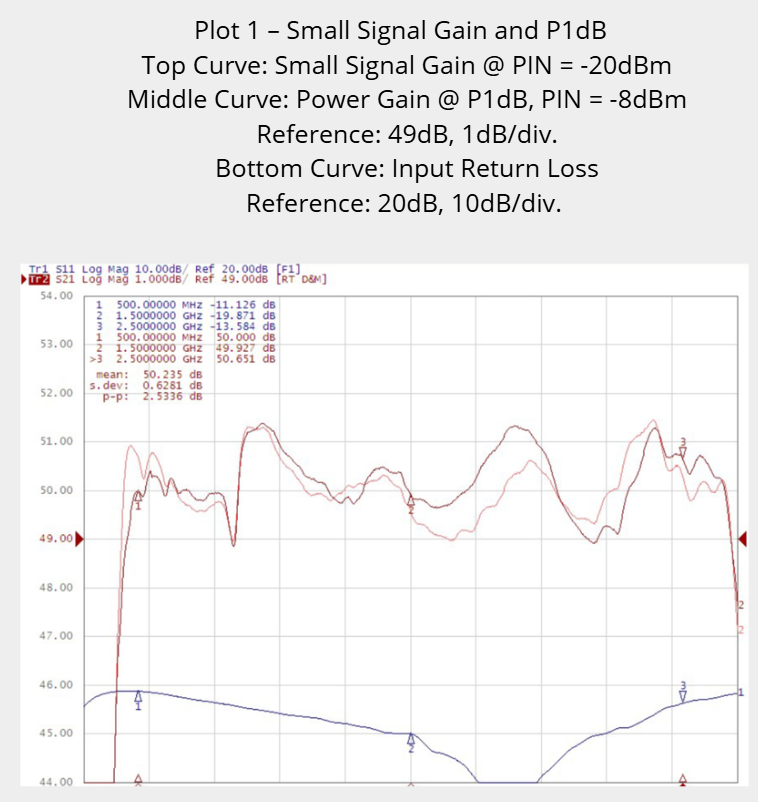

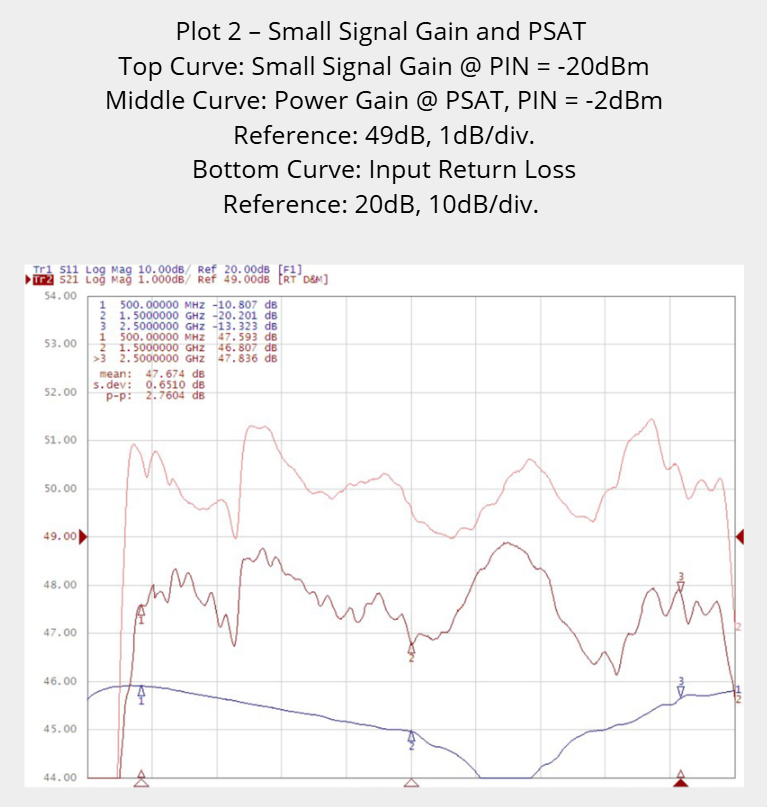

| Operating Frequency | 500 - 2500 MHz |
| Output Power CW | 25 (Min) / 30 (Typ) Watt |
| Output Power @1dB Comp | 20 Watt |
| Small Signal Gain | 46 (Typ) dB |
| Gain Flatness | ± 1.0 (Typ) / ± 1.5 (Max) dB |
| Input Return Loss | -10 dB |
| Noise Figure | 10 dB |
| Third Order Intercept | +45 dBm |
| Harmonics (@ 20W) | -15 (Max) / -25 (Typ) dBc |
| Spurious Signals | -60 (Max) / -70 (Typ) dBc |
| Power Supply | 100-240 V 50/60 Hz |
| Connectors | N-Type Precision Female |
| Dimensions (LxWxH) | 485 x 482 x 180 mm |
| Weight | 15 Kg |
