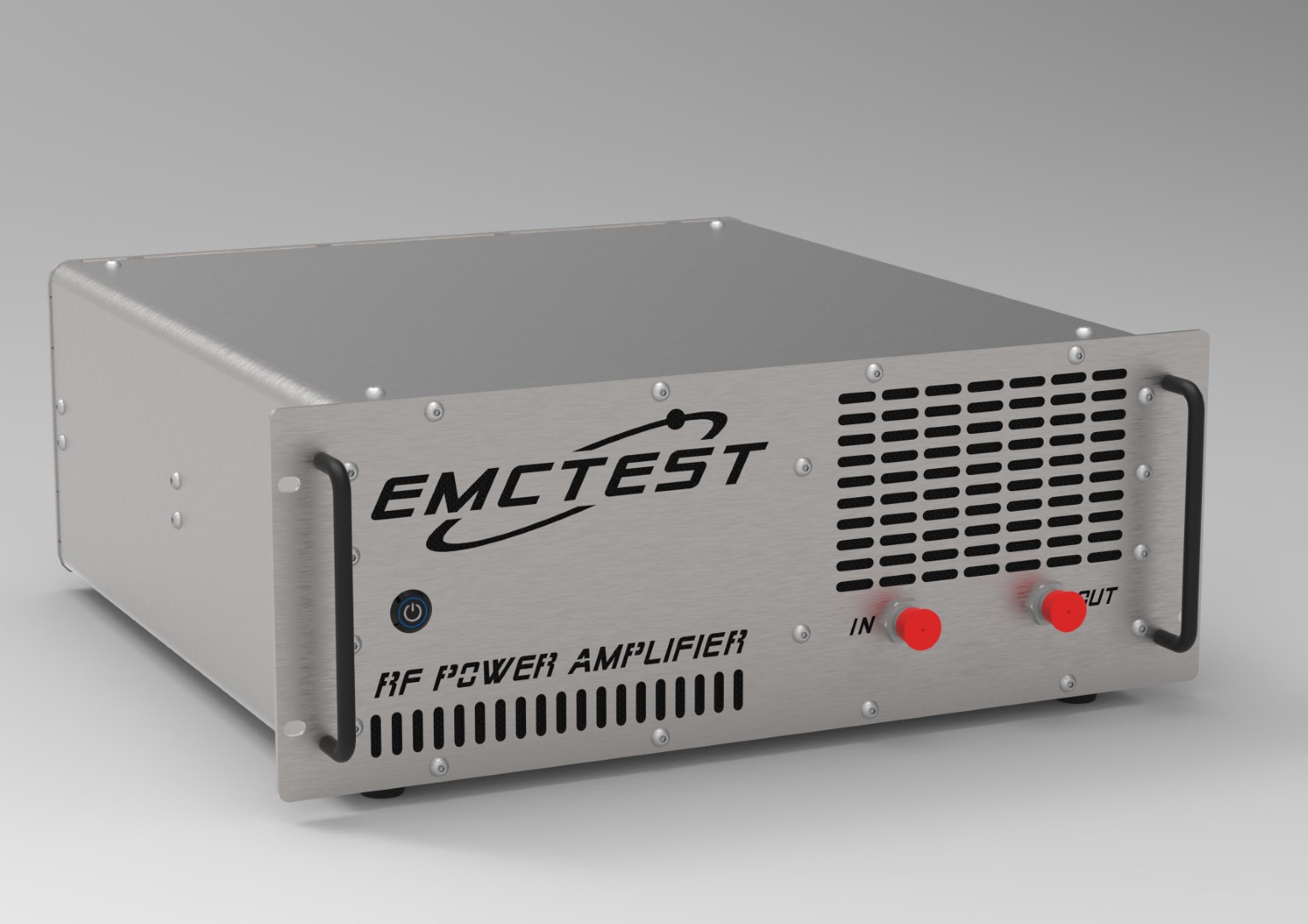

EMC1G6G40C
RF POWER AMPLIFIER
1 GHz - 6 GHz / 10 Watts
Designed for broadband jamming and EMC immunity testing, this high-power amplifier operates between 1 GHz and 6 GHz.
Powered by advanced Gallium Nitride (GaN) solid-state technology, it delivers a typical saturated output power of 10 W (40 dBm) with a gain of 40 dB. This amplifier ensures state-of-the-art power performance with excellent efficiency and linearity, making it ideal for general laboratory measurement applications. The EMC1G6G40C offers a robust and reliable solution for demanding RF environments.
Key Features
- Broadband frequency coverage 1 GHz - 6 GHz
- Saturated Output Power 10 W typical
- Advanced GaN solid-state technology
- High Gain (40 dB typical)
- Built-in control and protection circuits
- Ideal for EMC/EMI testing and jamming applications
- Rugged construction for reliability
Specifications
| Frequency Range | 1 - 6 GHz |
| Saturated Power (Psat) | 10 W (typ) @ 40 dBm |
| Power Gain | 40 dB (typ) |
| Gain Flatness | ± 2.0 dB (max) |
| Harmonics (@ 5W) | -10 dBc (typ) |
| Spurious Signals | -60 dBc (typ) |
| Input Return Loss | -10 dB (typ) |
| Power Supply | 100-240 V @ 50/60 Hz |
| Connectors | N-Type Precision Female |
| Cooling | Forced Air |
| Dimensions (LxWxH) | 485 x 482 x 180 mm |
| Weight | 20 kg |
| Operating Temp | -40 to +60 °C |

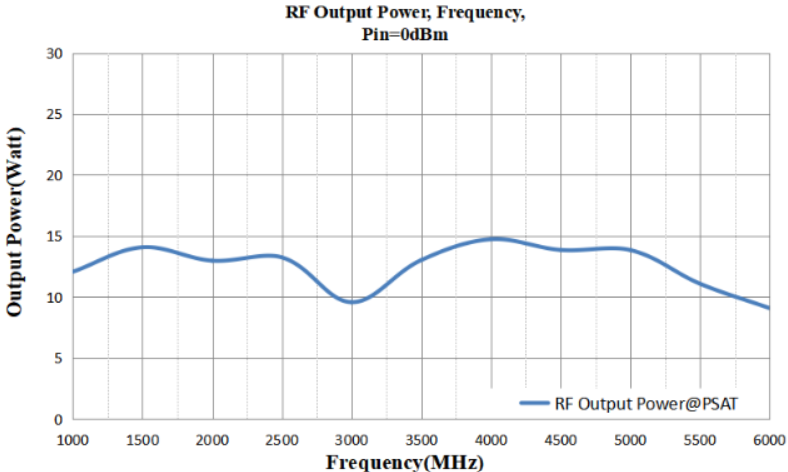

Attachments & Performance Data
