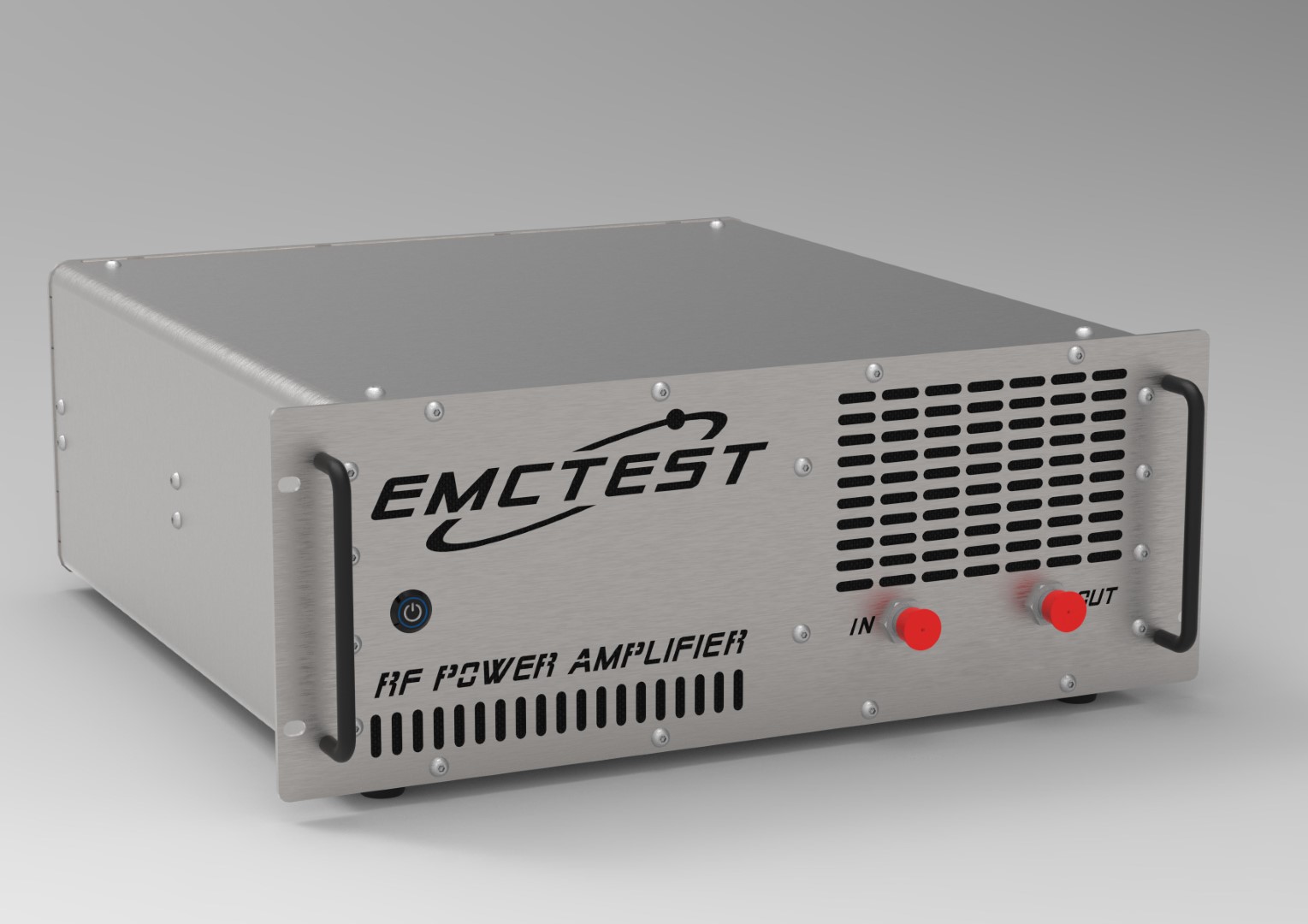

EMC20M1G43C
RF POWER AMPLIFIER
20 MHz - 1 GHz / 20 Watts
The EMC20M1G43C is a broadband linear power amplifier designed for EMC immunity testing and general laboratory applications.
Covering the 20 MHz to 1 GHz frequency band, this solid-state amplifier delivers a typical saturated output power of 20 W with a gain of 43 dB. Engineered with high linearity and a robust Class A/AB design, it ensures stable and reliable performance for radiated and conducted susceptibility testing (e.g. IEC/EN 61000-4-3/6).
Key Features
- Broadband frequency coverage 20 MHz - 1 GHz
- Linear Output Power (P1dB > 12 W)
- Solid-state Class A/AB design
- Gain 43 dB typical
- Low Harmonics and Spurious content
- Built-in protection circuits
- Ideal for IEC/EN 61000-4-3 and 61000-4-6 testing
- Rugged construction for reliability
Specifications
| Frequency Range | 20 MHz - 1 GHz |
| Saturated Power (Psat) | 20 W (typ) |
| Output Power (P1dB) | 12 W (min) |
| Power Gain | 43 dB (typ) |
| Gain Flatness | ± 2.0 dB (max) |
| Harmonics (@ 10W) | -20 dBc (typ) |
| Spurious Signals | -60 dBc (typ) |
| Input Return Loss | -10 dB (typ) |
| Power Supply | 100-240 V @ 50/60 Hz |
| Connectors | N-Type Precision Female |
| Cooling | Forced Air |
| Dimensions (LxWxH) | 485 x 482 x 180 mm |
| Weight | 20 kg |
| Operating Temp | -20 to +60 °C |

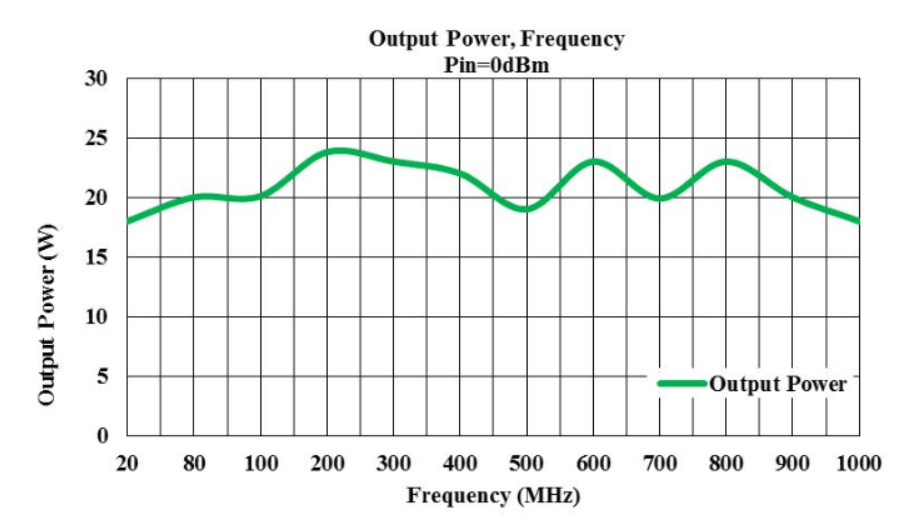

Attachments & Performance Data
