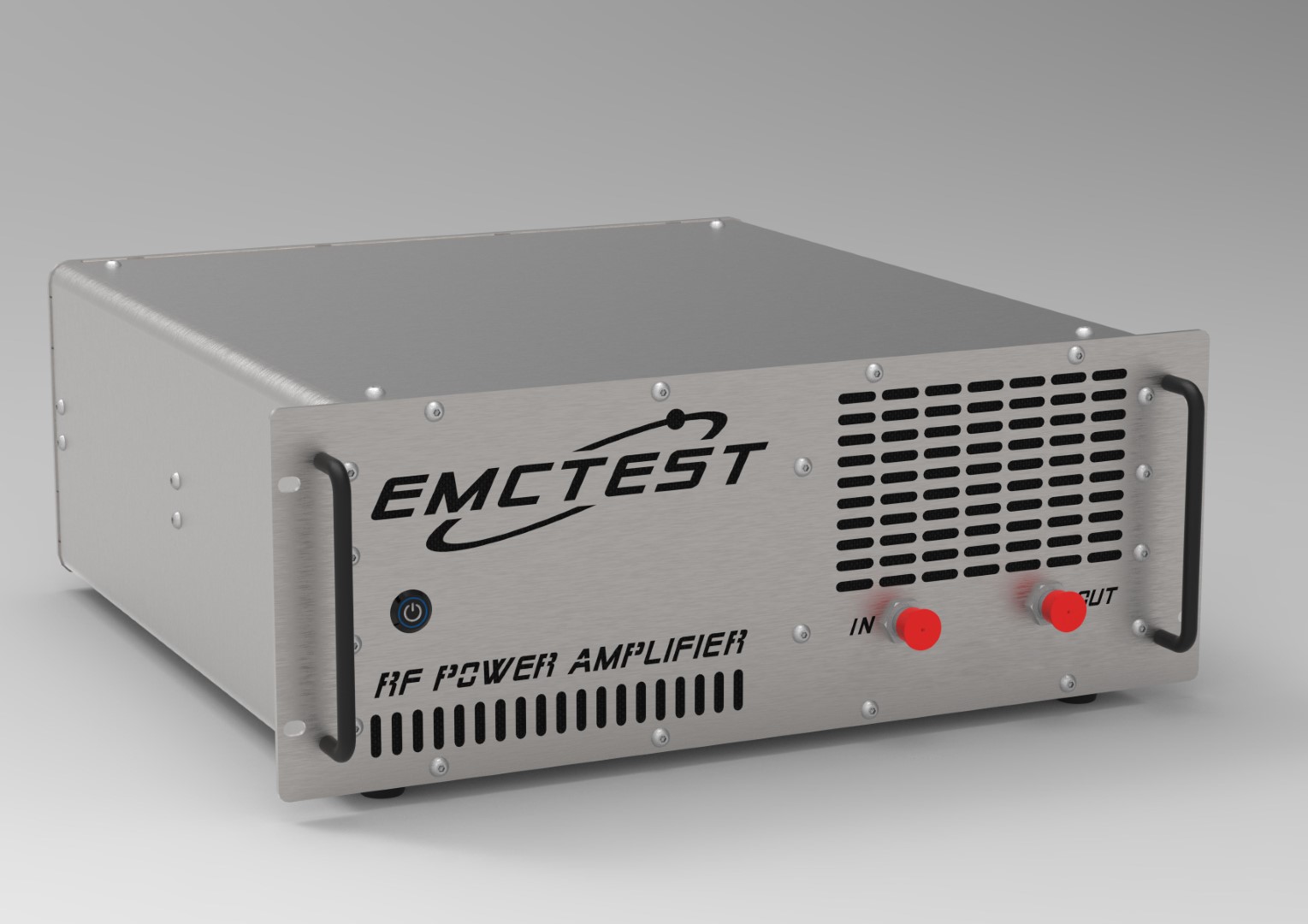

EMC20M2G744B
RF POWER AMPLIFIER
20 MHz - 2.7 GHz / 25 Watts
The EMC20M2G744B is a high-power broadband amplifier designed for laboratory and EMC immunity testing applications.
Operating from 20 MHz to 2.7 GHz, this solid-state amplifier delivers a typical saturated output power of 25 W with excellent linearity and a high gain of 50 dB. The unit is housed in a rugged enclosure with forced air cooling and is engineered to provide stable and reliable performance across the entire frequency band.
Key Features
- Broadband frequency coverage 20 MHz - 2.7 GHz
- High linearity and efficiency
- Solid-state Class A/AB design
- High Gain (50 dB typical)
- Built-in protection circuits
- Ideal for EMC/EMI testing, R&D and Lab applications
- Rugged construction for reliability
Specifications
| Frequency Range | 20 MHz - 2.7 GHz |
| Saturated Power (Psat) | 25 W |
| Output Power (P1dB) | 10 W (typ) |
| Power Gain | 50 dB (typ) |
| Gain Flatness | ± 2.0 dB (max) |
| Noise Figure | 10 dB (max) |
| Input Return Loss | 10 dB (typ) |
| Power Supply | 100-240 V @ 50/60 Hz |
| Connectors | N-Type Precision Female |
| Cooling | Forced Air |
| Dimensions (LxWxH) | 485 x 482 x 180 mm |
| Weight | 20 kg |
| Operating Temp | -20 to +60 °C |

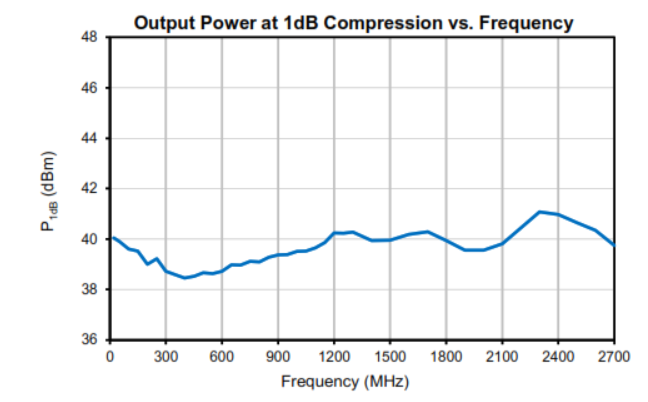

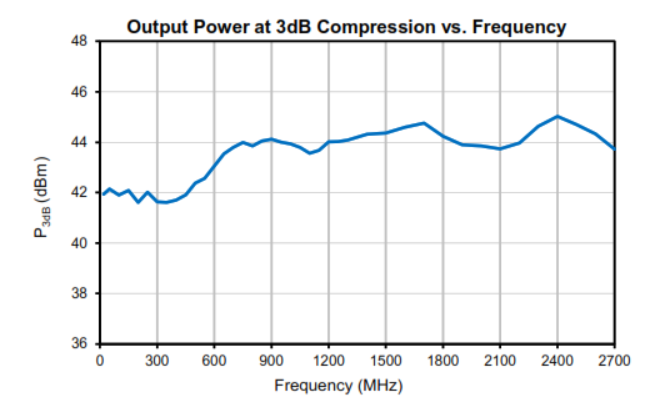

Attachments & Performance Data
